- 6GPM Whole House Water Filtration Unit,22.8 inch long and 2.5 inch diameter.MNPT Inlet/Outlet: 1/2" Inch Connector.
- CHECK YOUR BOOKLET in the package before you handle this system.Easy Installation .Simplicity and ease of maintenance.
- No Secondary Pollution.No chemical added to the water supply.No change in taste, odor, pH or conductivity nor the general chemistry of the water.
- 9000 hours Life of UV bulb.Efficiency sterilization: Disinfect harmful bacteria and viruses in 1-2 seconds.
- Missing or Broken parts means DOUBLE Replacements from us.Contact us if you need help.
More and more people have chosen to invest in their own water treatment systems to cope with the increasing potential dangers caused by water contaminants in private and municipal water sources.
Giardia, Cryptosporidium, and e.coli are considered to be the main microbe problem that are often found in private water sources, which could cause illness in humans. Most people are aware of e.coli, as it’s often discussed in media as a food contaminant, but it is also a water contaminant.
The UV water purification system is considered to be an effective equipment work on these problems. Not only provide better taste, but also provide additional insurance for your family health.
How it works?
The ultraviolet (UV) treatment process is an extremely quick physical process. Ultraviolet light mutates and/or degrades DNA. When the DNA is damaged, the organism becomes unable to function because its “instructions” are garbled or missing. An organism that has no instructions cannot function and reproduce, and cannot cause infection. It is rendered harmless and eventually dies.
In the UV disinfection process, water is purified as it runs through a stainless steel chamber (also called a “reactor”) that contains a special UV- producing lamp. As the water flows past the lamp, the microbe in the water receive a lethal dose of UV.
HQUA UV Water Purifier is a water treatment device that needs to be assembled, but it’s easy to finish. Each part of it have its own function, we will introduce them hereby:
Main Components Of The HQUA UV Water Sterilizer.

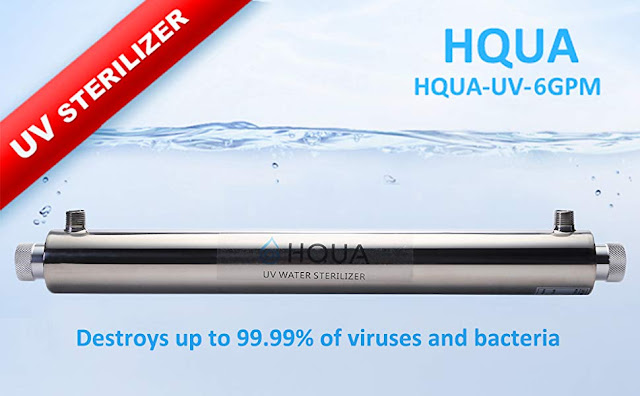

UV Reactor Chamber
The UV chamber is made by 304 stainless steel, which was widely used in food industry, medical, considered to be stable and durable.
Length-22.8 inch, diameter-2.5 inch, inlet/outlet 1/2”, no requirement of the water flow direction.
UV lamp & Quartz sleeve
Quartz sleeve (HQUA-OWS-6Q) not only provide an interspace for the UV lamp, but also ensure high transmittance (90%) for the UV light.
UV lamp (HQUA-OWS-6L, GPH565T5L standard 4-pin) provide enough UV light to destroy the DHA of the microbe and bacteria.
Electronic Ballast
Electronic ballast (HQUA-OWS-455EB) connect the UV lamp and the power (120V/60Hz), work as a controller in the system with 3.2 ft. (100cm) power cord and 3ft. (90cm) lamp cord.
Green light on ‘work’ means everything alright, red light blinks on ‘fault’ and the controller beeps when the system is failed.
HQUA UV Lamp Life 365 Days Countdown Timer is optional for this controller. Search " B07DJ4J4M8" to find it.
Go Green and Satey
Environment-friendly and safe sterilization treatment. Lack of chemicals means no harmful chemical byproducts are going back into the environment. And it avoid the potential threat residual chlorine, the taste of your water is not affected in any way as well.
Effective Sterilization
HQUA water sterilizer ensure a 99.99% reducing of bacteria and microbe in the water. The corresponding UV exposure is 30 mJ/cm². A slower flow rate, a higher wattage device or two sterilizer might be effective to handle a strong bacteria and microbe problem.
Installation and Maintenance
Easy installation and maintenance. No need for chemical supplement, the equipment is intended to be installed in the pipe system permanently. the lamp needs to be replaced annually and the quartz sleeve should be cleaned every 6-12 months, replace every 2 years.
After-sales Service
Excellent after-sales service. A lot of good reputation has accumulated on Amazon. Good communication experience and free replacements that helps many customers.
